4    Data Manipulation

---

4.1    Data Passing

---

4.1.1    Argument Passing Mechanisms

• Immediate value

  An immediate value argument item contains the value of the data item. The argument item, or the value contained in it, is directly associated with a parameter.

• Reference

  A reference argument item contains the address of a data item, such as a scalar, string, array, record, or procedure. That data item is associated with a parameter.

• Descriptor

  A descriptor argument item contains the address of a descriptor, which contains structural information about the argument's type (such as array bounds) and the address of a data item. That data item is associated with a parameter.

  Note that this standard does not define a standard set of descriptors. Consequently, descriptors cannot be used as part of a standard call.

Argument items are not self-defining; interpretation of each argument item depends on agreement between the calling and called procedures.

This standard does not dictate which of the three mechanisms must be used by a given language compiler. Language semantics and interoperability considerations might require different mechanisms to be used in different situations.

---

4.1.2    Normal Argument List Structure

An argument item can be used to pass arguments by immediate value, by reference, and by descriptor. Any combination of these mechanisms in an argument list is permitted.

Although the argument items form a logically contiguous sequence, they are, in practice, mapped to integer and floating-point registers and to memory in a fashion that can produce a physically discontiguous argument list. Registers $16 - $21 and $f16 - $f21 are used to pass the first six items of the argument item sequence. Additional argument items must be passed in a memory argument list that must be located at 0(SP) at the time of the call.

Table 4-1 specifies the standard locations in which argument items can be passed.

The following general rules determine the location of any specific argument:

• All argument items are passed in the integer registers or on the stack, except argument items that have floating-point data passed by immediate value.

• Floating-point data passed by immediate value is passed in the floating-point registers or on the stack.

• Only one location in any row in Table 4-1 can be used by any given argument item in a list. For example, if argument item 3 is an integer passed by value and argument item 4 is a single-precision floating-point number passed by value, argument item 3 is assigned to $18 and argument item 4 is assigned to $f19.

• A single- or double-precision complex value passed by immediate value is treated as two arguments for the purpose of this standard, with the real part coming first. For example, if the real part of a complex value is passed as the sixth argument item in register $f21, the imaginary part will be passed in memory as the seventh argument item.

The argument list, including the in-memory portion, as well as the portion passed in registers, can be read from and written to by the called procedure. Therefore, the calling procedure must not make any assumptions about the validity of any part of the argument list after the completion of a call.

---

4.1.3    Homed Memory Argument List Structure

---

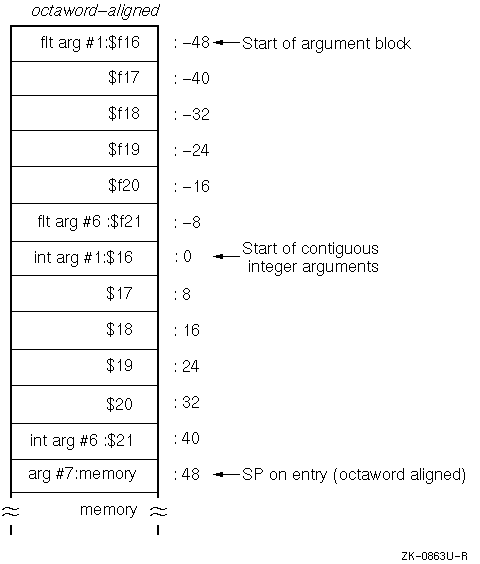

Figure 4-1: In-Memory Homed Argument List Structure

---

Generally, it is not possible to tell statically whether a particular argument is an integer or floating-point argument. Therefore, it is necessary to store integer and floating-point register argument contents in this structure. However, it is sometimes possible to determine statically that there are no floating-point arguments anywhere either in registers or on the stack. In this case, the first six entries can be omitted. To facilitate this special case, the address used to reference this structure is always the address of the first integer argument position.

The C-language type va_list is used to iterate through a variable argument list. The va_list type can be defined as follows:

    typedef struct {
        char     *base;
        int      offset;
        } va_list;

To load the next integer argument, the program reads the quadword at location (base+offset) and adds 8 to offset. To load the next floating-point argument, if offset is less than or equal to 6*8, the program reads the quadword location (base+offset-6*8). Otherwise, the program reads the quadword at location (base+offset). In both cases, the program adds 8 to offset. For details, see the file /usr/include/stdarg.h.

---

4.1.4    Argument Lists and High-Level Languages

• Arguments are mapped from left to right to increasing offsets in the argument item sequence. The $16 or $f16 register is allocated to the first argument; the last quadword of the memory argument list (if any) is allocated to the last argument.

• Each source language argument corresponds to one or more contiguous Digital UNIX calling standard argument items.

• Each argument item has 64 bits.

• A null or omitted argument, for example CALL SUB(A,,B), is represented by an argument item containing 0.

  Arguments passed by immediate value cannot be omitted unless a default value is supplied by the language. (This restriction makes it possible for called procedures to distinguish an omitted immediate argument from an immediate value argument with the value 0.)

  Trailing null or omitted arguments, for example CALL SUB(A,,), are passed by the same rules as those for embedded null or omitted arguments.

---

4.1.5    Unused Bits in Passed Data

Table 4-2 defines the various data type requirements for size and their extension to set or clear unused bits.

The following table contains the definitions for the extension type symbols used in Table 4-2:

Note

Sign64, when applied to a longword logical, duplicates bit 31 through bits <63:32>. This duplication can cause the 64-bit integer value to appear negative. However, careful use of 32-bit arithmetic and 64-bit logical instructions (with no right shifts) will preserve the 32-bit unsigned nature of the argument.

Because of the varied rules for sign extension of data when passed as arguments, calling and called routines must agree on the data type of each argument. No implicit data type conversions can be assumed between the calling procedure and the called procedure.

---

4.1.6    Sending Data

---

4.1.6.1    Sending Mechanism

• By immediate value

  An argument can be passed by immediate value only if the argument is one of the following:

  • One of the noncomplex scalar data types with a known size (at compile time) of less than or equal to 64 bits

  • A record whose size is known (at compile time)

  • A data set, implemented as a bit vector, with a known size (at compile time) of less than or equal to 64 bits

  No form of string, array, or complex data type can be passed by immediate value in a standard call.

  A standard immediate argument item must fill all 64 bits. Therefore, unused high-order bits of all data types (excluding records and Data32 items) must be zero-extended or sign-extended as appropriate, depending on the data type to fill all unused bits, as specified in Table 4-2.

• Records as immediate arguments

  Record values that are larger than 64 bits can be passed by immediate value if the following conditions are met:

  • The program must allocate as many fully occupied argument item positions to the argument value as are needed to represent the argument.

  • The value of the unoccupied bits is undefined in a final, partially occupied argument item position.

  • If an argument item is passed in one of the registers, it can only be passed in an integer register, never in a floating-point register.

• Nonstandard immediate arguments

  Nonrecord argument values that are larger than 64 bits can be passed by immediate value using nonstandard conventions, similar to those used for passing records. Thus, for example, a 26-byte string could be passed by value in four integer registers.

• By reference - nonparametric

  Nonparametric arguments (that is, arguments for which associated information such as string size and array bounds is not required) may be passed by reference in a standard call.

• By reference - parametric

  Parametric arguments (that is, arguments for which associated information such as string size and array bounds must be passed to the caller) may be passed by reference followed by one or more immediate arguments for the parametric values. (The parametric values do not need to immediately follow the reference arguments to which they apply.)

  ---

  Note

  This standard does not define interlanguage conventions for calls with parametric arguments.

  ---

• By descriptor

  Parametric arguments (that is, arguments for which associated information such as string size and array bounds must be passed to the caller) can be passed by a single descriptor.

  ---

  Note

  This standard does not define a standard set of descriptors for interlanguage use.

  ---

Note that extended floating-point values are not passed using the immediate value mechanism. Instead, they are passed using the by-reference mechanism. (When by-value semantics are required, however, it might be necessary to make a copy of the actual parameter and pass a reference to that copy to avoid improper alias effects.)

Note also that when a record is passed by immediate value, the component types have no bearing on how the argument is aligned. The record will always be quadword-aligned.

---

4.1.6.2    Order of Argument Evaluation

---

4.1.7    Returning Data

---

4.1.7.1    Function Value Return By Immediate Value

• Nonfloating-point function value return by immediate value

  A function value is returned by immediate value in register $0 if and only if the type of function value is one of the following:

  • Nonfloating-point scalar data type with size known (at compile time) to be less than or equal to 64 bits

  • Set, implemented as a bit vector, with size known (at compile time) to be less than or equal to 64 bits

  No form of string, record, or array can be returned by immediate value. Two separate 32-bit entities cannot be returned in $0.

  A function value of less than 64 bits returned in $0 must have its unoccupied bits extended (as appropriate, depending on the data type) to a full quadword. (See Table 4-2 for details.)

• Floating-point function value return by immediate value

  A function value is returned by immediate value in register $f0 if and only if it is a noncomplex single- or double-precision floating-point value (F, D, G, S, or T). A function value is returned by immediate value in registers $f0 and $f1 if and only if it is a complex single- or double-precision floating-point value (complex F, D, G, S, or T). The real part is in $f0 and the imaginary part is in $f1.

---

4.1.7.2    Function Value Return By Reference

The actual-argument list and the formal-argument list are shifted to the right by one argument item. The new first argument item is reserved for the address of the function value.

The calling procedure must provide the required contiguous storage and pass the address of the storage as the first argument. This address must specify storage that is naturally aligned according to the data type of the function value.

The called function must write the function value to the storage described by the first argument.

---

4.1.7.3    Function Value Return By Descriptor

Typically, the called routine creates the return object on its stack and leaves it there on return. This process is referred to as the stack return mechanism. The exit code of the called routine does not restore SP to its value before the call because, if it did, the return value would be left unprotected in memory below SP. The calling routine must be prepared for SP to have a different value after the call than the pointer had before the call.

---

4.2    Data Allocation

---

4.2.1    Data Alignment

To avoid such performance degradation, all data values for programs running on Digital UNIX systems should be naturally aligned. Table 4-4 contains information on data alignment.

For aggregates such as strings, arrays, and records, the data type to be considered for purposes of alignment is not the aggregate itself, but the elements that make up the aggregate. The alignment requirement of an aggregate is that all elements of the aggregate be naturally aligned. Varying 8-bit character strings, for example, must start at addresses that are a multiple of at least 2 (word alignment) because of the 16-bit count at the beginning of the string; 32-bit integer arrays start at a longword boundary, regardless of the extent of the array.

Note that the rules in Section 4.1.6.1 for passing by value an argument that is a record always provide quadword alignment of the record value independent of the normal alignment requirement of the record. If deemed appropriate by the implementation, normal alignment can be established within the called procedure by making a copy of the record argument at a suitably aligned location.

---

4.2.2    Granularity of Memory

---

4.2.3    Record Layout Conventions

The aligned record layout is defined by the following conventions:

• The components of a record must be laid out in memory corresponding to the lexical order of their appearance in the high-level language declaration of the record.

• The first bit of a record or subrecord must be directly addressable; that is, it must be byte aligned.

• Records and subrecords must be aligned according to the largest natural alignment requirements of the contained elements and subrecords.

• Bit fields (packed subranges of integers) are characterized by an underlying integer type, which is a byte, word, longword, or quadword in size, and by an allocation size in bits. A bit field is allocated at the next available bit boundary, provided that the resulting allocation does not cross an alignment boundary of the underlying type. If the resulting allocation crosses an alignment boundary, the field is allocated at the next byte boundary that is aligned as required for the underlying type. (In this latter case, the space skipped over is left permanently unallocated.)

  In addition, the alignment of the record as a whole is increased to that of the underlying integer type, if necessary.

• Unaligned bit strings, unaligned bit arrays, and elements of unaligned bit arrays must start at the next available bit in the record. No fill is ever supplied preceding an unaligned bit string, unaligned bit array, or unaligned bit array element.

• All other components of a record must start at the next available naturally aligned address for the data type.

• The length of a record must be a multiple of its alignment. (This requirement also holds when a record is a component of another record.)

• Strings and arrays must be aligned according to the natural alignment requirements of the data type of which the string or array is composed.

• The length of an array element is a multiple of its alignment, even if this designation leaves unused space at its end. The length of the complete array is the sum of the lengths of its elements.
