"Texture - ...(in extended use) the constitution, structure, or substance of anything with regard to its constituents or formative elements." (The Oxford Dictionary, 1971; 1989). "Texture - ...a basic scheme or structure; the overall structure of something incorporating all of most of parts." (Webster's Dictionary, 1959; 1986). |
Texture is a very general notion that can be attributed to almost everything in nature. For a human, the texture relates mostly to a specific, spatially repetitive (micro)structure of surfaces formed by repeating a particular element or several elements in different relative spatial positions. Generally, the repetition involves local variations of scale, orientation, or other geometric and optical features of the elements.
Image textures are defined as images of natural textured surfaces and artificially created visual patterns, which approach, within certain limits, these natural objects. Image sensors yield additional geometric and optical transformations of the perceived surfaces, and these transformations should not affect a particular class of textures the surface belongs.
Flowers0001 | Flowers0002 | Leaves0011 | Metal0002 |
Synthesised textures | |||
Examples of natural image textures (VisTex database, MIT Media Lab., USA) and textures synthesised using a generic Gibbs random field (GGRF) model with multiple pairwise pixel interactions. |
It is almost impossible to describe textures in words, although each human definition involves various informal qualitative structural features, such as fineness - coarseness, smoothness, granularity, lineation, directionality, roughness, regularity - randomness, and so on. These features, which define a spatial arrangement of texture constituents, help to single out the desired texture types, e.g. fine or coarse, close or loose, plain or twilled or ribbed textile fabrics. It is difficult to use human classifications as a basis for formal definitions of image textures, because there is no obvious ways of associating these features, easily perceived by human vision, with computational models that have the goal to describe the textures. Nonetheless, after several decades of reseach and development of texture analysis and synthesis, a variety of computational characteristics and properties for indexing and retrieving textures have been found. The textural features describe local arrangements of image signals in the spatial domain or the domain of Fourier or other spectral transforms. In many cases, the textural features follow from a particular random field model of textured images (Castelli & Bergman, 2002).
Many statistical texture features are based on co-occurrence matrices representing second-order statistics of grey levels in pairs of pixels in an image. The matrices are sufficient statistics of a Markov/Gibbs random field with multiple pairwise pixel interactions.

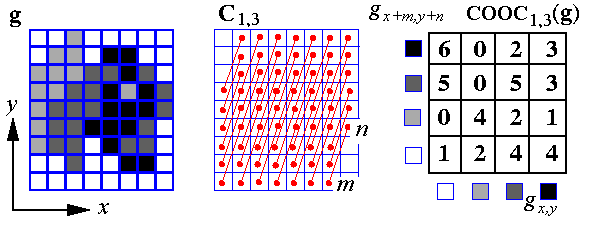

A co-occurrence matrix shows how frequent is every particular pair of grey levels in the pixel pairs, separated by a certain distance d along a certain direction a.
Let g = (g_{x,y}: x = 1, ..., M; y = 1, ..., N) be a digital image. Let Q={0, ..., q_{max}} be the set of grey levels. The co-occurrence matrix for a given inter-pixel distance d and directional angle a is defined as
where COOC_{m, n}(q, s|g) is the cardinality of the set
C_{m,n} of pixel pairs [(x,y), (x+m, y+n)]
such that g_{x,y}=q and
g_{x+m,y+n}=s.
Various statistical and information theoretic properties of the co-occurrence matrices can serve as textural features (e.g., such features as homogeneity, coarseness, or periodicity introduced by Haralick). But these features are expensive to compute, and they were not very efficient for image classification and retrieval (Castelli & Bergman, 2002).
Today's CBIR systems use in most cases the set of six visual features, namely,
Coarseness relates to distances of notable spatial variations of grey levels, that is, implicitly, to the size of the primitive elements (texels) forming the texture. The proposed computational procedure accounts for differences between the average signals for the non-overlapping windows of different size:
Instead of the average of S_{best}(x,y, an improved coarseness feature to deal with textures having multiple coarseness properties is a histogram characterising the whole distribution of the best sizes over the image (Castelli & Bergman, 2002).
Contrast measures how grey levels q; q = 0, 1, ..., q_{max}, vary in the image g and to what extent their distribution is biased to black or white. The second-order and normalised fourth-order central moments of the grey level histogram (empirical probability distribution), that is, the variance, σ^{2}, and kurtosis, α_{4}, are used to define the contrast: where and m is the mean grey level, i.e. the first order moment of the grey level probability distribution. The value n=0.25 is recommended as the best for discriminating the textures.
Degree of directionality is measured using the frequency distribution of oriented local edges against their directional angles. The edge strength e(x,y) and the directional angle a(x,y) are computed using the Sobel edge detector approximating the pixel-wise x- and y-derivatives of the image:
e(x,y) = 0.5(|Δ_{x}(x,y)| + |Δ_{y}(x,y)| ) |
a(x,y) = tan^{-1}(Δ_{y}(x,y) / Δ_{x}(x,y)) |
where Δ_{x}(x,y) and Δ_{y}(x,y) are the horizontal and vertical grey level differences between the neighbouring pixels, respectively. The differences are measured using the following 3 × 3 moving window operators:
−1 | 0 | 1 | 1 | 1 | 1 | |
−1 | 0 | 1 | 0 | 0 | 0 | |
−1 | 0 | 1 | −1 | −1 | −1 |
A histogram H_{dir}(a) of quantised direction values a is constructed
by counting numbers of the edge pixels with the corresponding directional
angles and the edge strength greater than a predefined threshold. The
histogram is relatively uniform for images without strong orientation and exhibits
peaks for highly directional images. The degree of directionality relates to the
sharpness of the peaks:
Three other features are highly correlated with the above three features and do not add much to the effectiveness of the texture description. The linelikeness feature F_{lin} is defined as an average coincidence of the edge directions (more precisely, coded directional angles) that co-occurred in the pairs of pixels separated by a distance d along the edge direction in every pixel. The edge strength is expected to be greater than a given threshold eliminating trivial "weak" edges. The coincidence is measured by the cosine of difference between the angles, so that the co-occurrences in the same direction are measured by +1 and those in the perpendicular directions by -1.
The regularity feature is defined as F_{reg}=1-r(s_{crs}+s_{con}+s_{dir} + s_{lin}) where r is a normalising factor and each s_{...} means the standard deviation of the corresponding feature F_{...} in each subimage the texture is partitioned into. The roughness feature is given by simply summing the coarseness and contrast measures: F_{rgh}=F_{crs}+F_{con}
In the most cases, only the first three Tamura's features are used for the CBIR. These features capture the high-level perceptual attributes of a texture well and are useful for image browsing. However, they are not very effective for finer texture discrimination (Castelli & Bergman, 2002).
Random field models consider an image as a 2D array of random scalars (grey values) or vectors (colours). In other words, the signal at each pixel location is a random variable. Each type of textures is characterised by a joint probability distribution of signals that accounts for spatial inter-dependence, or interaction among the signals. The interacting pixel pairs are usually calles neighbours, and a random field texture model is characterised by geometric structure and quantitative strength of interactions among the neighbours.

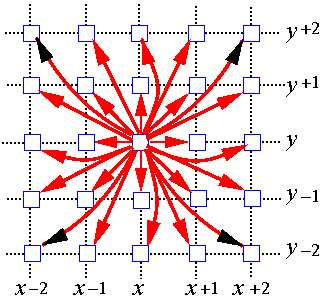

If pixel interactions are assumed translation invariant, the interaction structure is
given by a set N of characteristic neighbours of each pixel. This results in
the Markov random field model where the
conditional probability of signals in each pixel (x,y) depends only on
the signals in the neighbourhood {(x+m,y+n): (m,n)
from the set N}.
In a special case of the simultaneous autoregressive (SAR)
Gauss-Markov model, the texture is represented by a set of parameters of the
autoregression:
More general generic Gibbs random field models with multiple
pairwise pixel interactions allow to relate the desired neighbourhood to a set of most
"energetic" pairs of the neighbours. Then the interaction structure itself and
relative frequency distributions of signal cooccurrences in the chosen pixel
pairs can serve as the texture features (Gimel'farb & Jain,
1996).
MIT "Fabrics0008" | Interaction structure |
with 35 neighbours |
Texture features are usually compared on the basis of dissimilarity between the two feature vectors. The dissimilarity is given by the Euclidean, Mahalanobis, or city-block distance. In some cases, the weigted distances are used where the weight of each vector component is inversely proportional to the standard deviation of this feature in the database.
If the feature vector represents relative frequency distribution (e.g., a normalised
grey level cooccurrence histogram), the dissimilarity can also be measured by
the relative entropy, or Kullback-Leibler (K-L) divergence. Let
D(g,q) denote the divergence between two distributions,
f_{g} = (f_{g,t} :
t=1, ..., T) and f_{q} = (f_{q,t} :
t=1, ..., T). Then
If a texture is modelled as a sample of a 2D stationary random field, the Wold decomposition can also be used for similarity-based retrieval (Liu & Picard, 1996, Castelli & Bergman, 2000). In the Wold model a spatially homogeneous random field is decomposed into three mutually orthogonal components, which approximately represent periodicity, directionality, and a purely random part of the field.
The deterministic periodicity of the image is analysed using the autocorrelation function. The corresponding Wold feature set consists of the frequencies and the magnitudes of the harmonic spectral peaks (e.g., the K largest peaks). The indeterministic (random) components of the image are modelled with the multiresolution simultaneous autoregressive (MR-SAR) process. The retrieval uses matching of the harmonic peaks and the distances between the MRSAR parameters. The similarity measure involves a weighted ordering based on the confidence in the query pattern regularity. Experiments with some natural texture datrabases had shown that the Wold model provides perceptually better quality retrieval than the MR-SAR model or the Tamura's features (Castelli & Bergman, 2002).
An alternative to the spatial domain for computing the texture features is to use domains of specific transforms, such as the discrete Fourier transform (DFT), the discrete cosine transform (DCT), or the discrete wavelet transforms (DWT). Global power spectra computed from the DFT have not been effective in texture classification and retrieval, comparting to local features in small windows. At present, most promising for texture retrieval are multiresolution features obtained with orthogonal wavelet transforms or with Gabor filtering. The features describe spatial distributions of oriented edges in the image at multiple scales.

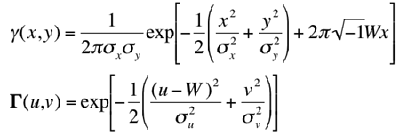

A 2D Gabor function γ(x,y) and its Fourier transform Γ(u,v) are as follows (Manjunath & Ma, 1996):
where σ_{u} = 1/2πσ_{x} and σ_{v} = 1/2πσ_{y}. The Gabor function is a product of an elliptical Gaussian and a complex-plane wave and it minimises joint 2D uncertainty in both spatial and frequency domain. Appropriate dilations and rotations of this function yield a class of self-similar Gabor filters for orientation- and scale-tunable edge and line detection. The filters form a complete but non-orthogonal basis set for expanding an image and getting its localised spatial frequency description. The total number of Gabor filters is equal to the product of the numbers of scales and orientations.

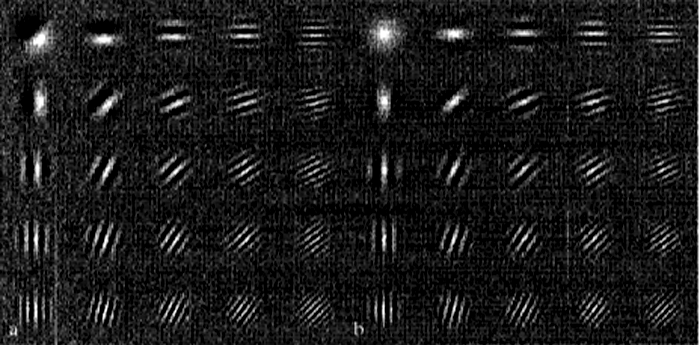

A class of self-similar Gabor wavelets is produced from the "mother" wavelet γ(x,y) by the dilations and rotations specified with the generating function that depends on the integer parameters m and k and the scale factor a > 1 as follows: γ_{mk}(x,y) = a^{−m}γ(x′_{n},y′_{k}) where x′_{k} = a^{−m}(x cos θ_{k} + y sin θ_{k}); y′_{k} = a^{−m}(−x sin θ_{k} + y cos θ_{k}); &theta_{k} = kπ/K, and K is the total number of orientations. The scale factor a^{−m} for x′_{k} and y′_{k} makes the filter energy independent of m. To exclude sensitivity of the filters to absolute intensity values, the real (even) components of the 2D Gabor filters are usually biased to make them zero mean. An ensemble of grey-coded differently oriented odd (a) and even (b) 2D Gabor filters are exemplified below (see Lee, 1996 for more detail):
These generalised Gabor functions are of the following 2D form:
where (x_{0}, y_{0}) is the spatial location of the filter centre in the image, and (u_{0}, v_{0}) is the spatial frequency of the filter in the frequency domain.

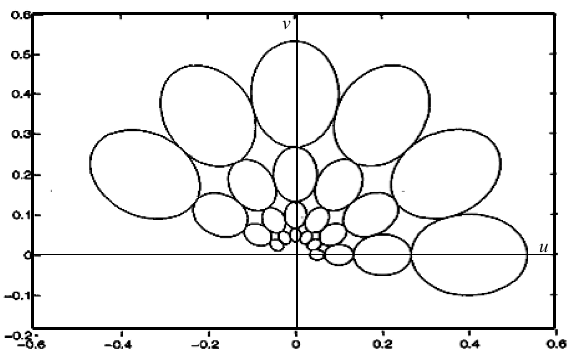

The Gabor wavelets are not orthogonal. Therefore, to reduce the informational redundancy of the filter outputs, the typical filter design strategy makes the half-peak magnitude supports of the filter responses in the spatial frequency domain touch each other. For example (Manjunath & Ma, 1996), the contours below correspond to the half-peak magnitude of the filter responses in the set of Gabor filters with the upper centre frequency of interest, u_{h} = 0.4, the lower centre frequency of interest, u_{l} = 0.05, six orientations (K = 6), and four scales (S = 4):
In such a design, the scale factor a and filter parameters σ_{u} and σ_{v} (and thus σ_{x} and σ_{y}) are specified in terms of u_{h} = W, u_{l}, K, and S, in particular, a = (u_{h}/u_{l})^{−1/(S−1)} (Manjunath & Ma, 1996, Vajihollahi & Farahbod, 2002):
The Gabor texture features include the mean and the standard deviation of the magnitude of the Gabor wavelet transform coefficients. Given an image g = (g(x,y): (x = 0, 1, ..., X−1; y = 0, 1, ..., Y−1), the Gabor wavelet transform is defined as
where the asterisk (*) indicates the complex conjugate, and the mean μ_{mk} and the stabdard deviation σ_{mk} of the magnitude of the transformed image describe each local texture region under an assumption of its spatial homogeneity:
A feature vector contains these pairs for all the scales and orientations of the wavelets, e.g. for the six orientations (K = 6), and four scales (S = 4) the feature vector contains 24 pairs: f=(μ_{00}, σ_{00}, ..., μ_{35}, σ_{35}).
The MPEG-7 multimedia content description interface involves three texture descriptors for representing texture regions in images (Manjunath e.a., 2001; Sikora, 2001), namely,
This 12-bit descriptor relates to regularity, directionality, and coarseness (scale) of visual texture perception and can be used both for browsing and coarse classification of textures. First, the image is filtered with a bank of orientation- and scale-tuned Gabor filters in order to select and code two dominant texture orientations (3 bits per orientation). Then an analysis of filtered projections of the image along the dominant orientations specify the regularity (2 bits) and coarseness (2 bits per scale). The second dominant orientation and second scale features are optional.
The regularity of a texture has four levels, from 0 (irregular, or random texture) to 3 (a periodic pattern). There is an ambiguity in the intermediate two values: a well-defined directionality with no perceivable micro-pattern is considered more regular than a pattern that lacks directionality and periodicity, even if the individual micro-patterns are clearly identified:
Texture regularity | 00 (irregular) | 01 | 10 | 11 (periodic) |
---|---|---|---|---|
Texture example from the Brodatz's digitised set | ||||
D005 | D066 | D068 | D001 |
The directionality of a texture is quantified to six values from 0^{o} to 150^{o} in steps of 30^{o}. In particular, the above texture D001 has strong vertical and horizontal directionalities. The descriptor specifies up to two dominant directions encoded each to 3 bits: 0 means a texture does not have any dominant directionality, and the remaining directions have values from 1 to 6.
The coarseness associated with each dominant direction relates to image scale or resolution and is quantised to four levels: 0 indicates a fine grain texture and 3 indicates a coarse texture. These values are also related to the frequency space partitioning used in computing the HTD (see the next section).
To compute the browsing descriptor, an image is filtered using a bank of scale and orientation selective band-pass filters similar to those for the HTD. The filtered outputs are then used to compute the components of the texture browsing descriptor. Bec ause the descroptor semantics relates to human perception of the texture, the descriptor can be also specified manually. In browsing, any combination of the three main components - regularity, directionality, and coarseness - can be used to browse the database. In similarity retrieval, the texture browsing detector can be used to select a set of candidates; then the HTD provides a precise similarity matching among the candidate images.
Homogeneous texture is an important visual primitive for searching and browsing through large collections of similar looking patterns. If an image can be partitioned into a set of homogeneous texture regions, then the texture features associated with the regions can index the image data. Examples of homogeneous textured patterns are viewed from a distance parking lots with cars parked at regular intervals, or aagricultural areas and vegetation patches in aerial and satellite imagery. Examples of queries that could be supported in this context could include "Retrieve all satellite images with less than 20% cloud cover" or "Find a vegetation patch that looks like this region" (Martinez, 2004).

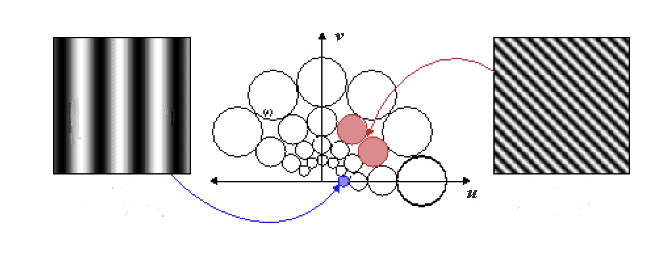

This descriptor uses 62 8-bit numbers per image or image region in order to allow for accurate search and retrieval. The image is filtered with a bank of orientation and scale sensitive Gabor filters, and the means and the standard deviations of the filtered outputs in the spatial frequency domain (5 scales × 6 orientations per scale) are used as the descriptor components. The frequency space is partitioned into 30 channels with equal angular divisions at 30^{o} intervals and five-octave division in the radial direction:

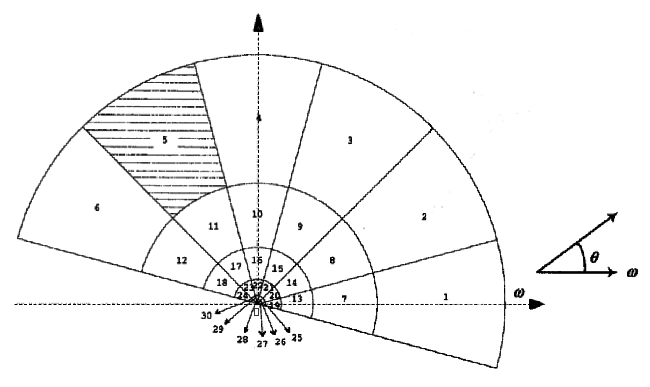

In a normalised frequency space 0 ≥ &omega ≥ 1, the centre frequencies of the feature channels are spaced equally in 30^{o} in angular direction such that the polar angle θ_{k} = 30^{o}k where k = 0, 1, ..., 5 is angular index. In the radial direction, the centre frequencies of the neighbouring feature channels are spaced one octave apart: ω_{m} = 2^{−m}ω_{0} where m = 0, 1, ..., 4 is radial index and ω_{0} = 0.75 is the highest centre frequency, i.e. ω_{1} = 0.375; ω_{2} = 0.1875; ω_{3} = 0.09375, and ω_{4} = 0.046875. The octave bandwidths B_{m} are, respectively, B_{0} = 0.5; B_{1} = 0.25; B_{2} = 0.125; B_{3} = 0.0625, and B_{4} = 0.03125. The channel index i = 6m + k + 1.
The Gabor filters for the feature channels are represented in the polar coordinates; the Fourier transform of such a 2D Gabor function is:
The filter parameters ensure that the half-peak contours of the 2D Gaussians of adjacent filters in the radial and angular directions touch each other: σ_{θ,k} = 15^{o}/(2 ln 2)^{0.5} and σ_{ω,m} = 0.5B_{m}/(2 ln 2)^{0.5}.
The mean and standard deviation of the filter output are logarithmically scaled to obtain two numerical features (e_{i} and d_{i}, respectively) for each channel i. In addition to these 2×30 = 60 features, the HTD includes also the mean intensity f_{DC} and the standard deviation f_{SD} of the image: HTD = [f_{DC}, f_{SD}, e_{1}, ..., e_{30}, d_{1}, ..., d_{30}].
The edge histogram descriptor resembles the colour layout descriptor (CLD) in its principle of capturing the spatial distribution of edges which is useful in image matching even if the texture itself is not homogeneous. An image is partitioned into 4×4 = 16 sub-images, and 5-bin local edge histograms are computed for these sub-images, each histogram representing five broad categories of vertical, horizontal, 45^{o}-diagonal, 135^{o}-diagonal, and isotropic (non-orientation specific) edges. The resulting scale-invariant descriptor is of size 240 bits, i.e.16×5 = 80 bins and supports both rotation-sensitive and rotation-invariant matching (Manjunath e.a., 2001; Sikora, 2001).
The edge histograms are computed by subdividing each of the 16 sub-images into a fixed number of blocks. The size of these blocks depends on the image size and is assumed to be a poer of 2. To have the constant number of blocks per sub-image, their sizes are scaled in accord with the original image dimensions. Each block is then treated as 2×2 pixel image (by averaging each of the 2×2 partitions), and a simple edge detector is applied to these average values. The detector consists of four directional filters and one isotropic filter:
Five edge strengths, one for each of the five filters, are computed for each image block. If the maximum of these strengths exceeds a certain preset threshold, the corresponding image block is an edge block contributing to the edge histogram bins. The bin values are normalised to the range [0.0, 1.0] and non-linearly quantised into 3 bits per bin.
